Model | ZYPM-200 | ZYPM-250 | ZYPM-300 | ZYPM-400 | ZYPM-500 | ZYPM-650 |
Capacity(kg/h) | 10-120 | 50-200 | 80-300 | 100-500 | 300-1000 | 400-1500 |
Rotary Speed
(r/min) | 5200 | 4200 | 4200 | 4200 | 3900 | 2800 |
Voltage(V) | 220 | 380 | 380 | 380 | 380 | 380 |
Power(kw) | 3.0 | 5.5 | 7.5 | 11 | 15 | 22 |
Fineness(mesh) | 10-120 |
Weight(kg) | 120 | 220 | 300 | 400 | 350 | 480 |
Machine Size
(mm) | 510*450*900 | 660*580*1210 | 1000*630*1230 | 1200*790*1300 | 900*700*1700 | 1400*1150*1500 |
Package Size
(mm) | 660*510*970 | 860*660*1250 | 1070*760*1150 | 1300*930*1230 | 1030*780*1750 | 1500*1250*1480 |

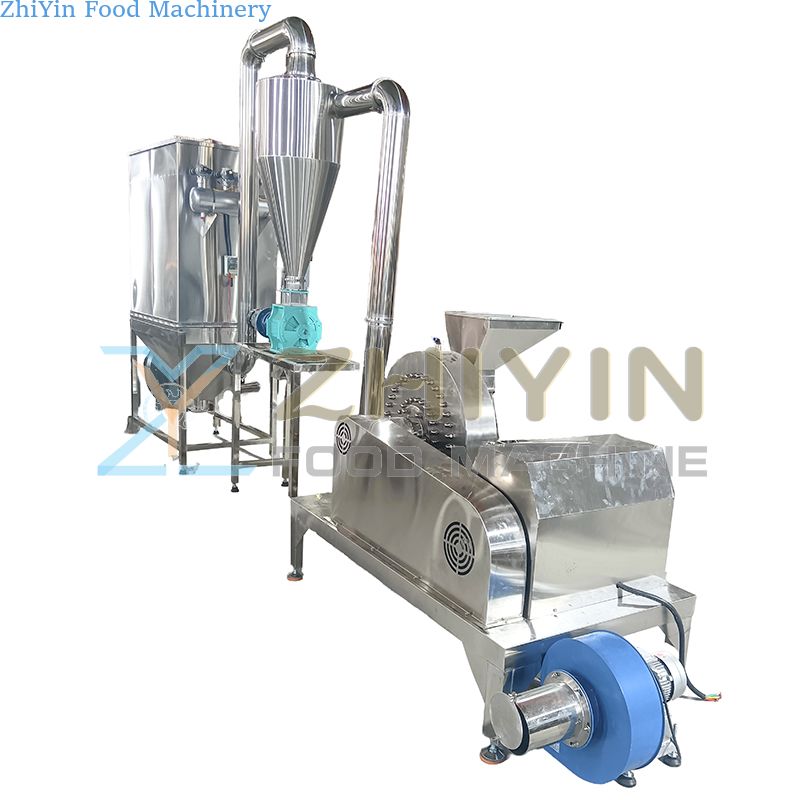

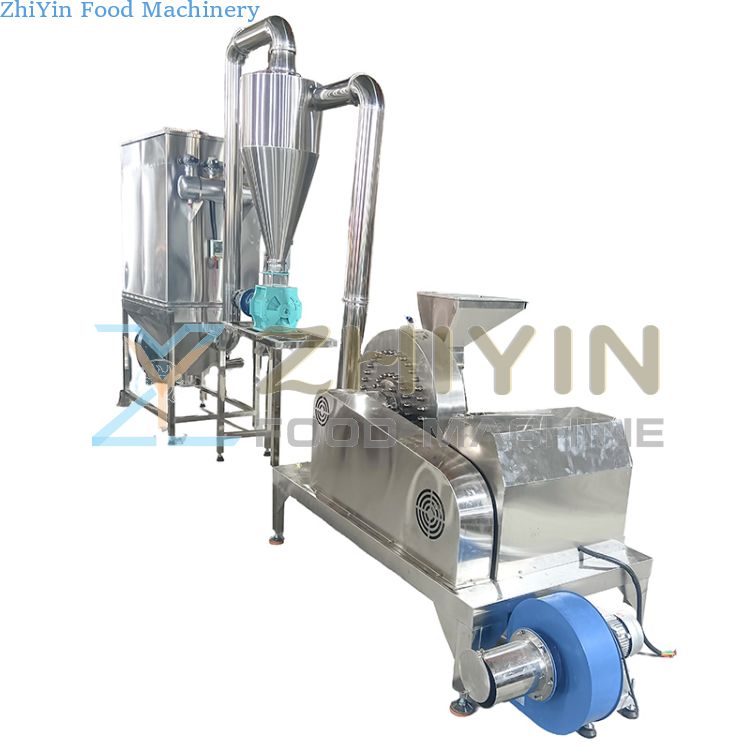

Stainless Steel Toothed-Disc Pulverizer Fine Grinder for Rice and White Sugar Milling Equipment for Five Grains Raw Materials
.jpeg)
Features of the Five-Grain Dust Removal and Grinding Machine:
(1) The entire machine is made of stainless steel, meeting the standards of multiple industries. The grinding chamber is equipped with a water-cooled jacket, suitable for the grinding of most heat-sensitive materials.
(2) Low noise. A separate material collection chamber and dust collection chamber are configured to ensure the full collection of dust, meeting the cleanliness requirements of users. The machine has good dynamic balance, significantly reducing noise.
(3) The grinding knife assembly is equipped with blades, increasing the air flow in the grinding chamber, which can ensure output while reducing the temperature generated during grinding, making it more suitable for grinding materials with poor fluidity and stickiness.
(4) Multiple specifications of screens are provided to meet various fineness requirements.
(5) Simple operation.
(6) Strong production capacity, capable of meeting the output requirements of most users.
(7) Available in two forms: with dust removal and without dust removal, meeting the needs of different customers.
(8) Compact structure, no dead corners, easy for cleaning.
.jpeg)
Number of punching mesh(Fineness) | Aperture size(For reference only) |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
.jpeg)
.jpeg) | .jpeg) |

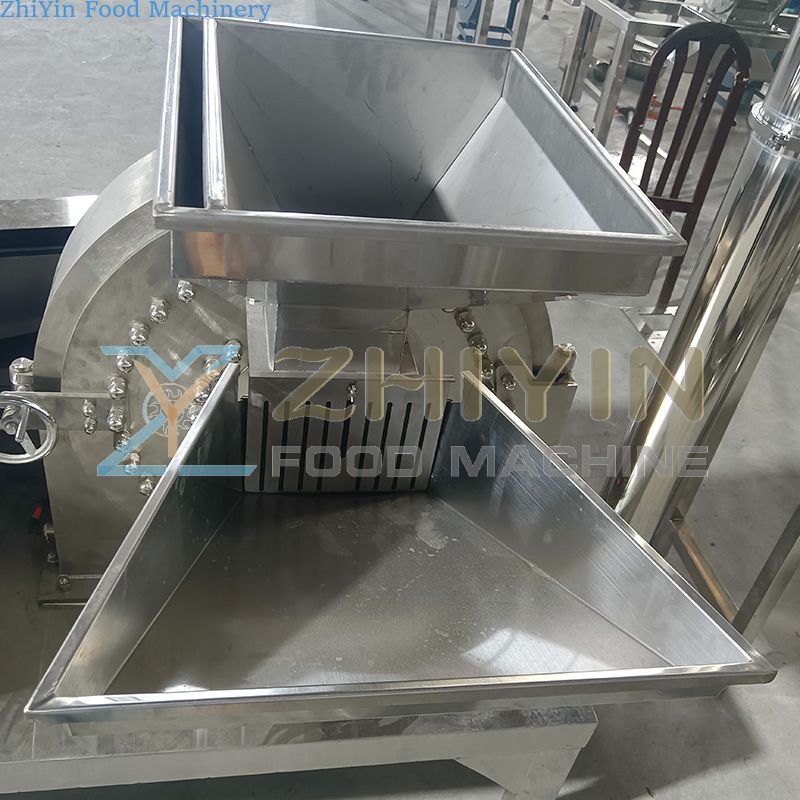

304 Stainless steel material- Whole machine display - Other functions and production capacity can be customized | Through the high-speed relative motion between the movable gear disc and the fixed gear disc, the materials are crushed under the effects of mutual impact, shearing, etc. |
.jpeg) | .jpeg) |
Provide power for the ash cleaning system, remove the dust on the surface of the cover bag through pulse jet blowing, and ensure that the dust removal efficiency reaches over 99.5%. | Pulse dust collection box- The dust on the surface of the filter bags is removed through pulse jet technology to achieve gas purification. |
.jpeg) | .jpeg) |

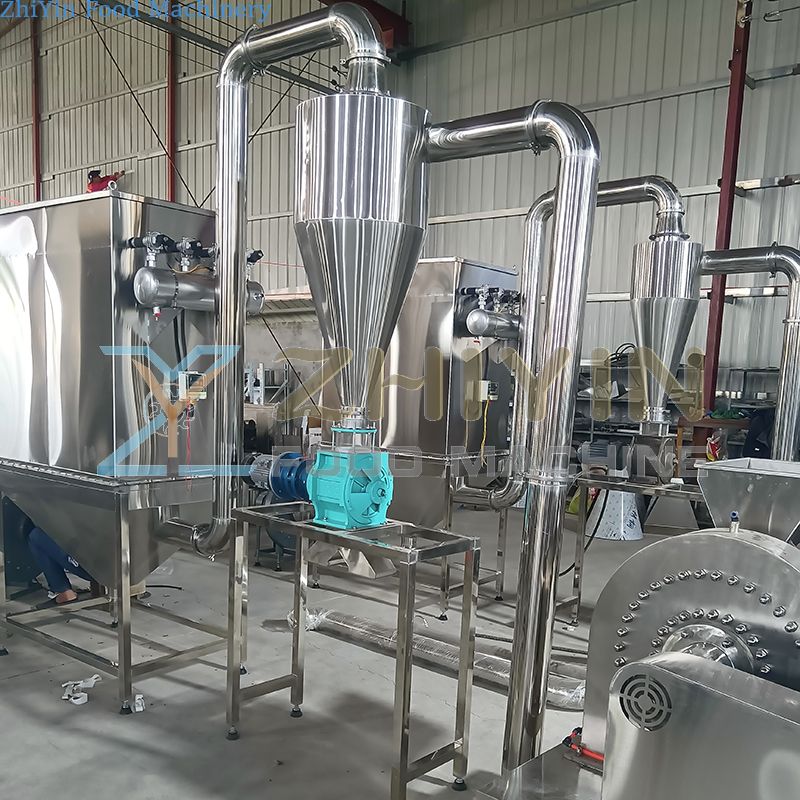

Efficient dust removal that achieves gas-solid separation by utilizing centrifugal force. | Pulse dust collection box- The dust on the surface of the filter bags is removed through pulse jet technology to achieve gas purification. |
This machine is suitable for the powder industries in the fields of chemical engineering and food (such as white sugar, granulated sugar, salt, rice, corn, starch, oats, flour, soybeans, peas, lentils, green beans, spices, flavoring agents, sweeteners, dried fruits, nuts, potato chips, crushed bread, cocoa powder, potato flour, coffee, milk powder, onions, dehydrated vegetables, lotus seeds, glucose, oat hulls, fruit shells, ginger, pepper, chili, paprika, oil-corn, soybeans, star anise, cinnamon, cinnamon bark). It is a complete equipment that can both crush and continuously discharge dust.
