Vegetable Diced Cleaning And Processing Line Vegetable Slice Eddy Current Washing Machine

Place of Origin:Shandong, China
Voltage:380V
Power:3.5kw
Dimension(L*W*H):3000*1100*1300mm
Weight:1200kg
After-sales Service Provided:Online support
Application fields:Snack food factory, Meat processing plants, Fruit processing plant, Cooking oil factory, Vegetable processing plant, Seasoning plant, Frozen food Factory
Raw material:Water, Fruit, Vegetables
Output product name:Vegetable/Fruit Cleaning
Key Selling Points:Automatic
Name:vegetable bubble washing Line
Application:Vegetable Fruit Washing Machine
Usage:Vegetable diced / Fruit diced
Type:Fully Automatic Washing
Material:SUS304 Stainless Steel
Washing type:Water Bubble Washing
Item:Automatic Washing Machine
Capacity:500-2000kg/h

Suitable for washing leafy vegetables, root vegetables and preserved fruits, such as: Chinese cabbage, lettuce,bo Bo, turnip, etc.This device is especially suitable for cutting and not easily sticking to the net belt.

Vegetable Diced Cleaning And Processing Line Vegetable Slice Eddy Current Washing Machine

Vegetables and fruits cleaning line vegetable diced bubble washing machine dewater machine

Model
Dimension
Motor power
Mesh band width
Capacity
ZYQPJ-300
300*125*130cm
3.6kw
800mm
400-500 kg/h
ZYQPJ-400
400*125*130cm
4.1kw
800mm
600-800 kg/h
ZYQPJ-500
500*125*130cm
5.1kw
800mm
1200-1500 kg/h
ZYQPJ-600
600*125*130cm
6.5Kw
800mm
3500-5200 kg/h
Note:
According to the production demand, our products support customization

Product features

1.An overview:
Vortex vibration cleaning machine is a new type of fruit and vegetable cleaning and processing machinery developed by ourcompany.It and other cleaning machines have two big differences, one is clean water, two is vibration transport materials.The machine mechanism is simple, low failure rate, compact structure, easy to operate, good cleaning effect, and good waterfiltration, high productivity.
2.Working principle:
Vortexing is formed by using the cleaning water to make the material clean in the vortexing water.When the material is cleaned, it makes spiral movement together with the clean water in the cleaning tank. After the material is cleaned, it is pushed forward by the vibration conveying mechanism under the action of hydrodynamics and sent out of the cleaning machine.
3.Main structures:
The machine is composed of a frame, a cleaning tank, a water pump, a water storage tank, a vibration conveyer, an electrical control system and a control switch.
4.Main technical parameters:
a.Power: 4.8KW;
b.Power supply: 50HZ, 380V;
c.External dimension: 4200*1150*1600mm;
d.Production capacity: 1000-2000kg/h;

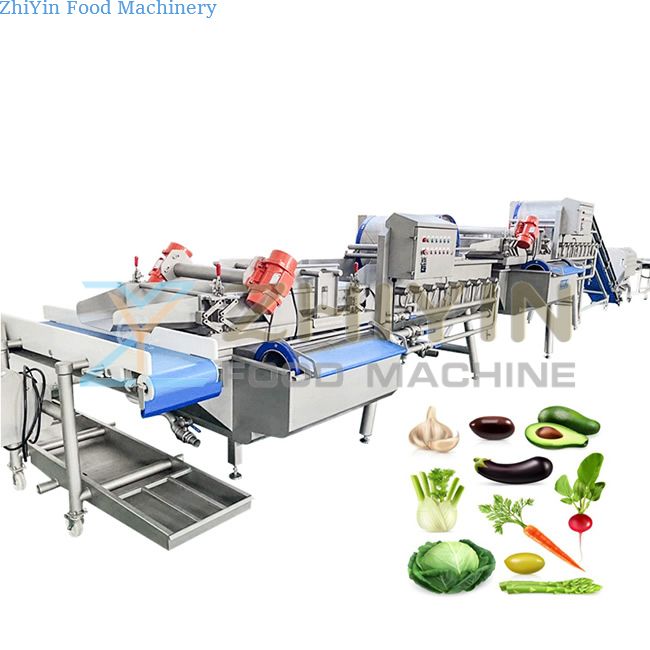

The design of the production line is generally as follows: selection table (and hob type vegetable cutter combined into one) + elevator + eddy current cleaning machine (first cleaning) + eddy current cleaning machine (ozone cleaning is added for the second time) + air dryer + packing.

About US:
Zhengzhou ZhiYin industry co.,LTD.,have already been set food machinery design,processing,production as one of the industry and trade of the company.
Its product cases include potato chip production line,banana chip processing machine,snack food production machine,meat processing machine,industrial food frying line,vacuum frying machine,low temperature freezing production line,etc.
After years of development,it has formed a series of perfect systems for raw material supply,product development,process design,finished product inspection,production management,storage and transportation,and technical services.

Our machines can be customized and we have proven solutions.
The lead time of the production line is about 35 working days.
