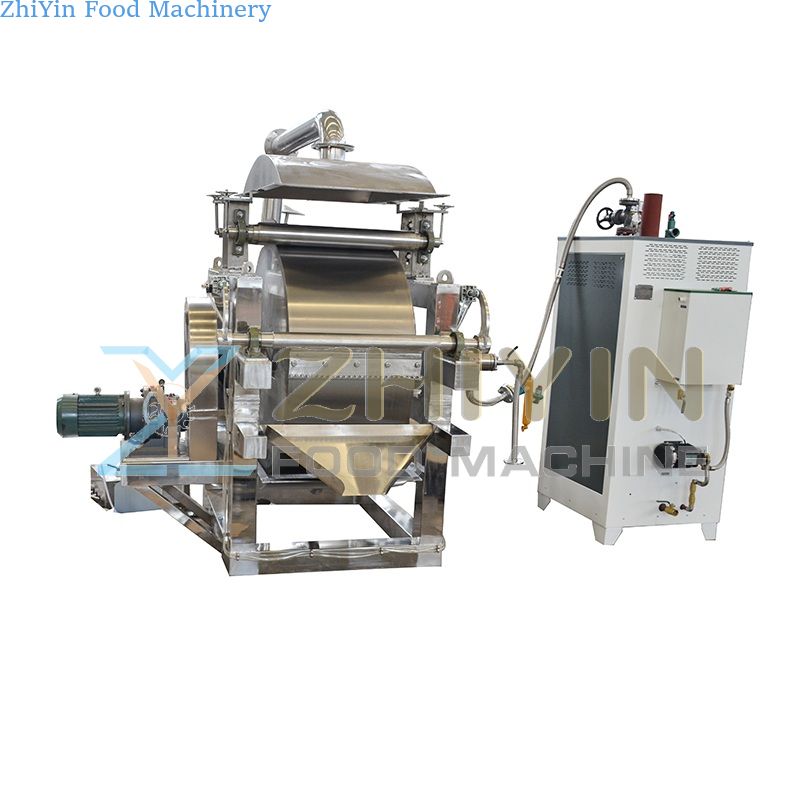

Stainless steel 304 material Emulsion Scraper Drying Machine Liquid Chemical Crystallization Drying Machine Steam Heating Drum Scraper Dryer

Be the first to review this product

SKU: set

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Stainless steel 304 material Emulsion Scraper Drying Machine Liquid Chemical Crystallization Drying Machine Steam Heating Drum Scraper Dryer

type:Rotary Drying Equipment

heating method:Steam Heating

material:SUS304, SUS304L

core components:Motor

application:Food Processing, Plastics Processing, Chemicals Processing

voltage:380 V

power(w):1000 W, 400 W

weight (kg):3200

brand name:ZHIYIN

Name:Drum scraper drying machine

Material:304 Stainless Steel

Function:Drying Liquid Material

Heating source:Steam heating

Feature:Continuous Drying Machine

Usage:Viscous liquid paste like material

Raw material:Viscous liquid,Paste like materia

Dryig process:Liquid material

Product Type:Liquid Spray Dryer

Stainless steel 304 material Emulsion Scraper Drying Machine Liquid Chemical Crystallization Drying Machine Steam Heating Drum Scraper Dryer

Introduction-Drum scraper dryer

1.The drum scraper dryer is an internal heating conduction type rotary continuous drying equipment.

2.The rotating drum passes through the material trough at its lower part, adhering to a thick layer of material film.

3.Heat is transported to the inner wall of the drum through pipes, conducted to the outer wall of the drum, and then transferred to the material film, causing the moisture in the material film to evaporate, dehumidify, and dry the material containing moisture.

The installation of this machine is carried out in accordance with the general layout. The ground should be flat. Pressure gauges and safety valves should be installed at the steam pipe inlet, and the flanges of each steam inlet should be firmly connected.

1. High thermal efficiency.	Due to the fact that the heat transfer mechanism of the drum dryer belongs to thermal conduction, the direction of heat transfer remains consistent throughout the entire operation cycle. Except for cover heat dissipation and thermal radiation loss, all other heat is used for the evaporation of the wet film of the drum material, and the thermal efficiency can reach 70% -80%.
2. High operational flexibility and applicability.	Adjustable drying factors of the wave tube dryer. Factors such as feed concentration, coating film thickness, heating medium temperature, and drum rotation speed can all affect the drying efficiency of the drum dryer, and these factors are not interrelated. This brings great convenience to the drum drying operation,allowing it to adapt to the drying of various materials and meet different production requirements.
3. Short drying time.	The drying cycle of materials is generally only 10-300 seconds, which is suitable for heat sensitive materials. If the drum dryer is set in a vacuum chamber, it can operate under reduced pressure conditions.
4. High drying rate.	Due to the thin film of the coating applied to the cylinder wall, generally between 0.3-1.5mm, and the consistent direction of heat and mass transfer, the surface of the film can maintain a strong evaporation of 20-70KG. H2O/M2. H.

Applicable materials:

It is suitable for drying liquid or relatively viscous materials in industries such as chemical engineering, dyes, food, and metallurgy.

Stainless steel 304 material Emulsion Scraper Drying Machine Liquid Chemical Crystallization Drying Machine Steam Heating Drum Scraper Dryer

Drum dryer-Product Usage

The drum scraper dryer is suitable for drying liquid and viscous materials in industries such as chemical, dye, food, metallurgy, yeast, etc, And the dried products of Rice noodles, oatmeal, a starch, potato powder and other foods into flakes, powders and granules.

The process principle and flow:

Liquid or slurry like materials are heated by steam or other heat carriers on the surface of a drum to form a thin film. The drum is dried during one rotation, and the product is scraped off with a scraper. The exposed surface of the drum comes into contact with the raw material again and forms a thin film for drying.
