Puffed Snack Processing Machinery Cereal Food Rice Cooker Small Snacks Processing Seasoning Line
Applicable Industries:Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops.
After Warranty Service:Video technical support, Online support
Voltage:100-500
Power:10-200kw
Weight:1t-3t
Dimension(L*W*H):22*2*4m
shapes:such as ball,sticks,flower,nails,star and so on
capacity:100-600kg/h
Name:Nutritions rice instant powder food Puffing Making Machine
Usage:Puffing Corn Chips making machine
Material:304 Stainless Steel
Heating method:Electric Heating
Raw material:corn flour
Used for: puffing Corn Chips snacks Food Making Machine
Automatic Corn Flakes Breakfast Cereal Processor Puffed Food Machinery
| Model | ZYCP65 | ZYCP70 | ZYCP75 | ZYCP85 |
| Installed Power | 130kw | 160kw | 256kw | 205kw |
| Capacity | 100-120kg/hour | 200-260kg/hour | 200-350kg/hour | 300-500kg/hour |
| Dimension | 39×1.5×2.5m | 41×1.5×2.5m | 52×1.5×2.6m | 45×1.5×2.6m |
Puffed Snack Processing Machinery Cereal Food Rice Cooker Small Snacks Processing Seasoning Line
cheese corn puffs plant cheese puff snack food processing maker corn flour snacks pellet extruder machinery puffing rice processing machine |
NO. | Name | Dimensions | Power | Product usage |
1 | Mix machine | 1260*800*1200mm | 75kw | Used for mixing raw corn flour with a small amount of liquid. |
2 | Screw feeding machine | 3100*590*2200mm | 0.75kw | The mixed material is conveyed to the feed hopper of the extruder by a screw conveyor. |
3 | Twin screw extruder | 5000*1200*1500mm | 165kw | The twin-screw dry extruding extruder is used to extrude the mixed corn flour instantaneously and produce high expanded granules. |
4 | Vibrating screen | 1530*820*790mm | 0.55kw | Removal of debris after the formation of highly expanded particles. |
5 | Air pressure conveyor | 1200*530*2500mm | 1.1kw | The high compression particles are transported to the Tableting machine by air transport mode. |
6 | Tableting machine | 8460*1300*1940mm | 12.25kw | The highly compressed particles are pressed into sheets. |
7 | Electric oven | 8460*1300*1940mm | 66kw | There is a good insulation layer between the working room and the box shell, which improves the evenness of temperature in the box;
Drying the product gets rid of excess moisture and increases its shelf life. |
8 | Hoisting machine | 1579*700*1460mm | 0.55kw | Batch in a Vibrating distributor using a hoist via a post-oven cornflakes. |
9 | Vibrating distributor | 1300*1200*1450mm | 0.37kw | The cornflakes are evenly distributed by vibration, so that the products can be more evenly into the high temperature oven. |
10 | High temperature oven | 8710*1490*1845mm | 1.5kw | The corn flakes are puffed again at high temperature in the oven to achieve a more crisp taste. |
11 | Spray candy machine | 820*540*1680mm | 4.12kw | The machine achieves thermal insulation for the syrup, which can prevent the syrup from cooling into agglomerates. It contains a
nozzle system. |
12 | Seasoning line | 3750*870*1780mm | 1.12KW | The Spray nozzle system completes the sugar spraying process on the surface of corn flakes in the seasoning machine. |
13 | Climbing the oven | 8040*1290*1920mm | 66kw | Dry the sugar and water on the surface of cornflakes. |
14 | Cooling line | 5000*500*750mm | 0.75kw | After spraying sugar on the cornflakes out of the dryer after cooling. |
15 | Packing machine | 1600*1000*1600mm | 2kw | The finished corn flakes after cooling are automatically weighing and packing |
cheese corn puffs plant cheese puff snack food processing maker corn flour snacks pellet extruder machinery puffing rice processing machine
1. Small Corn Puffed Snack Extruder Machine Expand Corn Snacks Food Extruder Production Line is widly used for producing corn snacks, corn puffs, nutrition powder, cereal bar, breakfast cereal, chocolate filled snack etc. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.
2. Small Corn Puff Snack Extruder Machine maize snacks food production line adopts corn flour,rice powder, wheat flour etc as raw materials
3. Different shapes can be made by adjusting the dies from extruder
4. Output can be 150kg/h, 250kg/h, 450kg/h
5. Flow chart:Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, According to local use voltage machine custom.
7. All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

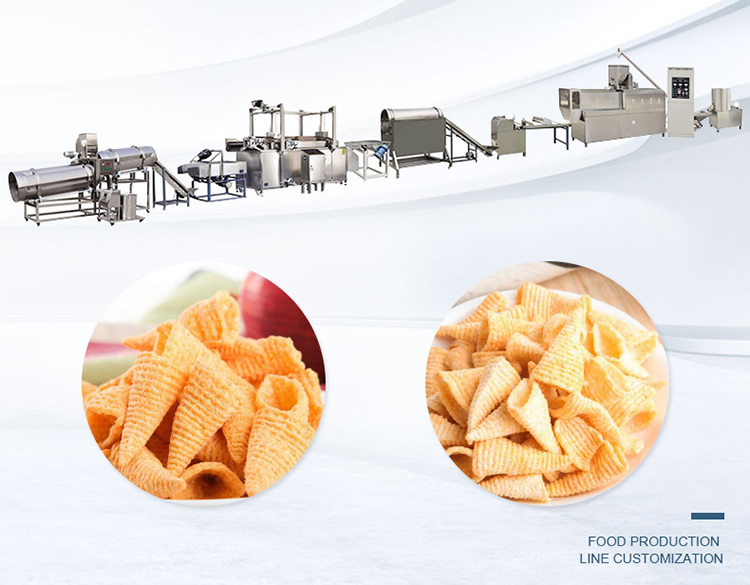

Puffing corn flakes customer application case display:
