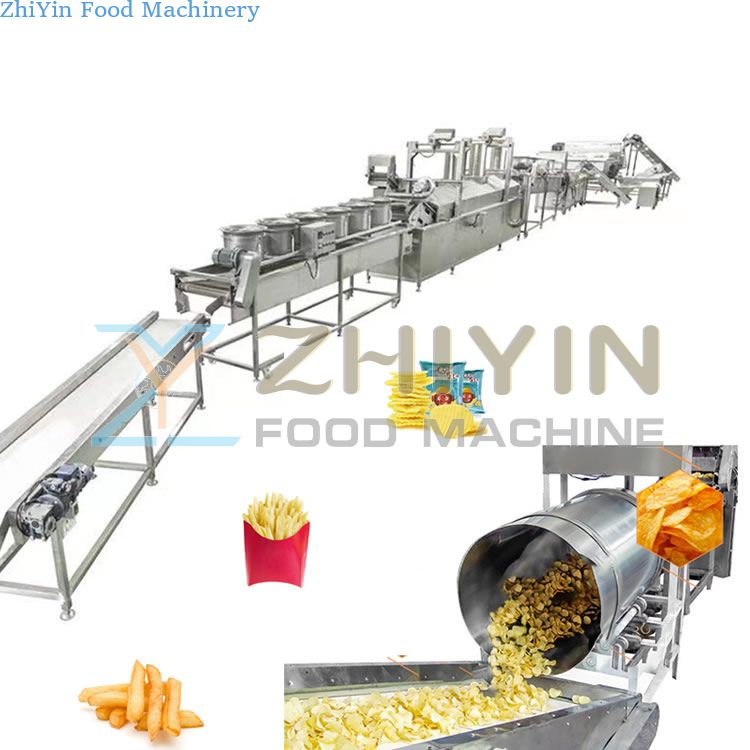

Potato Chips Production Line Automatic French Fries Potato Chips Making Line
.jpeg)
Potato Chips Production Line Automatic French Fries Potato Chips Making Line
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Potato Chips Production Line Automatic French Fries Potato Chips Making Line - Products Advantage
1.Process capacity (finished capacity 100kg/h to 2000kg/h) and work flow can be customized. french frying production line
2. Allequipment are made of SUS304,electrical apparatus element are Schneider brand or CHINT brand.
3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
4. The size of French fries and the thickness of potato chips are adjustable. french fry production line 5. For French fries line, we have special equipment to remove the unqualified fries. french fry production line 6. With special designed fryer, quick heating and energy saving, enabled good performance. french fry production line.
Potato Chips production line allocation list-The above equipment can be customized according to different output.
Potato Chips Production Line Automatic French Fries Potato Chips Making Line
NO. | Machinery | Feature |
1. | Hoister | It is used to lift fresh potatoes into next step screw washing and peeling machine automatically. |
2. | Screw potato washing and peeling machine | It is used to peel potatoes completely with hard brush and emery brush, uneven and corrugated brushes can peel potatoes completely. |
3. | Inspecting table | It is used to pick out unqualified potatoes such as bad parts and potato eyes manually, this machine can be equipped with Waste bins and return unpeeled potatoes into previous peeling machine. |
4. | Potato cutter | It is used to cut potato strips, strips size can be customized |
5. | Potato slicer | It is used to cut potato chips, chips thickness can be adjusted. |
6. | Hoister with water bucket | It is used to preclean and lift potato strips into next step Rinsing machine. |
7. | Rinsing machine | It is used to wash potato starch and protect potato from oxidation to keep strips and chips' color. |
8. | Blanching Machine | 1.It is used to deactivate the activity of the oxidase, take off the starch to keep french fries’s soft taste.
2.Heating source can use Gas heating, Electricity heating or Diesel heating any one.
3.Blanching time and Blanching temperature can be adjusted. |
9. | Vibration de-water machine | It is used to remove extra water, the bottom with water tray. This machine also has many small holes to leak out waste parts and
unqualified parts of strips. |
10. | Air-cooling machine | It is used to do secondary water removal. |
11. | Hoister | It is used to lift potato strips into next step Continuous frying machine. |
12. | Continuous frying machine | 1.It is used to fry potato strips into fries in short time.
2.Heating source can use Gas heating, Electricity heating or Diesel heating any one.
3.Frying time and Frying temperature can be adjusted. |
13. | Air Drying Machine | It is used to remove extra oil |
14. | Air-cooling machine | It is used to do secondary oil removal and cool down the temperature after frying. |
15. | Hoister | It is used to convey fries into freezer from air-cooling machine. |
16. | Seasoning machine | Pre-packaged fried food for seasoning, batch seasoning, you can match a variety of flavors |
17. | Packing machine | Seasoned potato chips and French fries are packaged according to different specifications |
Potato Chips Production Line Automatic Potato Chips Production Line Frozen French Fries Making Machine
Allocation list-The above equipment can be customized according to different output.
NO. | Name | Quantity | Dimension |
1. | Conveyor hoist machine | 1 set | 2000*800*2000mm |
2. | Cleaning and peeling machine | 1 set | 1800*900*1500mm |
3. | Picking line | 1 set | 950*800*950mm |
4. | French fries potato chip machine | 1 set | 3000*1600*900mm |
5. | Washing machine | 1 set | 3000*1600*950mm |
6. | Blanching machine | 1 set | 1500*1000*1300mm |
7. | Vibration water remover machine | 1 set | 3000*800*1000mm |
8. | Picking line | 1 set | 4000*1200*1400mm |
9. | Air cooled dewatering machine | 1 set | 2000*800*1300mm |
10. | Conveyor hoist machine | 1 set | 3500*1200*2600mm |
11. | Electric heating frying line | 1 set | 1500*1000*1300mm |
12. | Vibration oil remover machine | 1 set | 4000*1200*1600mm |
13. | Air drying machine | 1 set | 4000*1200*1600mm |
14. | Conveyor hoist machine | 1 set | 2000*800*2200mm |
15. | Seasoning machine | 1 set | 2000*700*1600mm |
16. | Packing | 1 set | 2400*700*3200mm |
Service:
We own Professional Engineers, Aftersales Staff and a young strong Sales Teams.Based on "People Oriented, Leading Technology, Honest Management", we will offer you reliable products and best service.
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. We accept testing machine with fresh potato in our factory before delivery.
About US:
Zhengzhou ZhiYin industry co.,LTD.,have already been set food machinery design,processing,production as one of the industry and trade of the company.
Its product cases include potato chip production line,banana chip processing machine,snack food production machine,meat processing machine,industrial food frying line,vacuum frying machine,low temperature freezing production line,etc.
After years of development,it has formed a series of perfect systems for raw material supply,product development,process design,finished product inspection,production management,storage and transportation,and technical services.
Our machines can be customized and we have proven solutions.
The lead time of the production line is about 35 working days.
