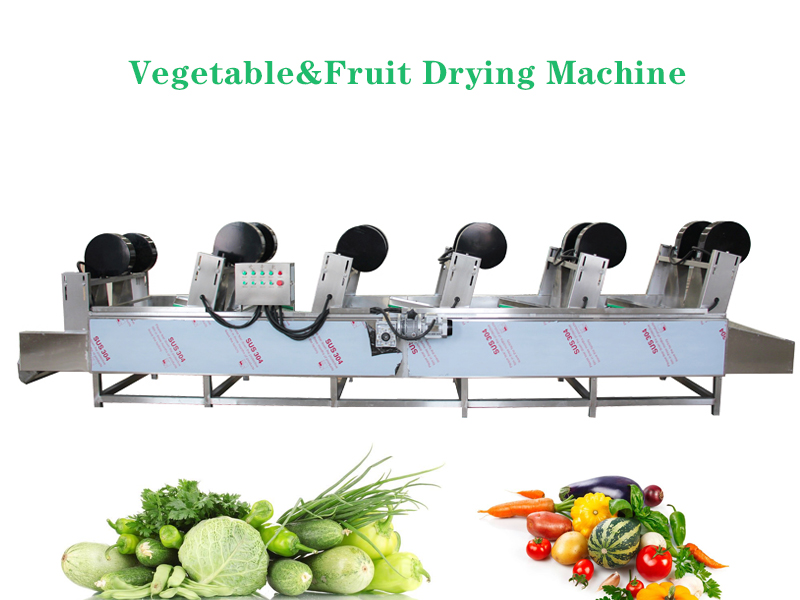

industrial SUS304 stainless steel fruit and vegetable air drying machine

Industrial vegetable drying machine French Fries Air Drying Dewatering Machine

Marketing Type:New Product 2021
Warranty of core components:1 Year
Core Components:PLC, Motor
Type:Air Drying Machine
Voltage:220v/380v/customized
Power:4.5kw
Weight:300kg
Dimension(L*W*H):3000*1200*1000mm
Certification:ce
After-sales Service Provided:Free spare parts
Name:air drying machine
Material:304 Stainless Steel
Application:vegetables and fruits
Suitable for:Vegetable Fruit
PACKAGE:Standard Wooden Packaging
Feature:High Efficiency Easy Operate
Related machine:French Fries Producion Line
Production capacity:500-800kg/h
Function:Cooling+Drying

industrial SUS304 stainless steel fruit and vegetable air drying machine

Introduction

1. frame: the whole uses SUS304 stainless steel to make, conforms to the national food production safety standard.
2.fan: adopt large air volume as fan, the distance between each group fan and fan is 1 m, air drying efficiency is high, fan height can be adjusted freely according to different product.
3.Stainless steel mesh cover: in order to prevent the product from being blown off in the air-drying, there is a punched
stainless steel mesh cover in the space of the equipment. The product will only flip inside and won't be blown out The shield can be removed for easy cleaning.
4.transmission system: mainly consists of transmission chain, transmission sprocket, bearing seat, driving shaft, driven shaft and mesh belt. The mesh belt is driven by each driven shaft independently, the net belt itself has no pull force, the service life of the net belt is increased, and the service life of the net belt is improved, which is convenient for disassembly and maintenance. The net belt all has the brush to protect the edge, the protection product is not easy to be squeezed, the damage, inview of the product dead corner too many, needs to carry on the net belt to flip many times, this may achieve the better air drying effect; each time flips the chain independent drive, reduces the chain pull force, Extend service life.
5.electronic control system The control system is integrated with the equipment with frequency conversion reducer, speed and slow adjustable, the reducer drives the transmission chain operation, which is brought to the net belt to run.The equipment outlet end with screen, feed end with stainless steel baffle, prevent material from running out, the outlet can better gather the product.

industrial SUS304 stainless steel fruit and vegetable air drying machine
Model
Size
Power
kw
Capacity
kg/h
Qty of fan
(piece)
Mesh belt width
mm
FG-300
3000*1250*1300
4.5
500-800
6
800
FG-400
4000*1250*1300
10.1
800-1200
8
800
FG-500
5000*1250*1300
13.6
1200-1500
10
800
FG-600
6000*1250*1300
16.6
1500-1800
12
800
FG-700
7000*1250*1300
18.6
1800-2000
14
800
FG-800
8000*1250*1300
20
2000-2500
16
800

Product features-industrial SUS304 stainless steel fruit and vegetable air drying machine

1.With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying
2.With SUS 304 mesh belt, mesh belt width could be 500-1000mm
3.Mesh speed adjustable by gearbox
4.With turnover type or flat type mesh belt, suitable for different products drying
5.Each unit of blowing fan can be controlled separately
6.Suitable for production line, continuously working
vegetable air drying machine
Blowing fan
The air volume can be controlled according to customer requirements to customize hot air ducts and cold air ducts
vegetable air drying machine
Mesh belt
Mesh belt is made of 304 stainless steel, belt size can be customized according to customer needs
Vegetable air drying machine
Mesh belt motor
Reached a cooperation with Germany's Siemens company and adopted Siemens inverter motor
Vegetable air drying machine fruit dryer
Control box
All electrical components adopt Siemens, which greatly extends the service life of the distribution box

Vetebale Air drying machine fruit dryer
