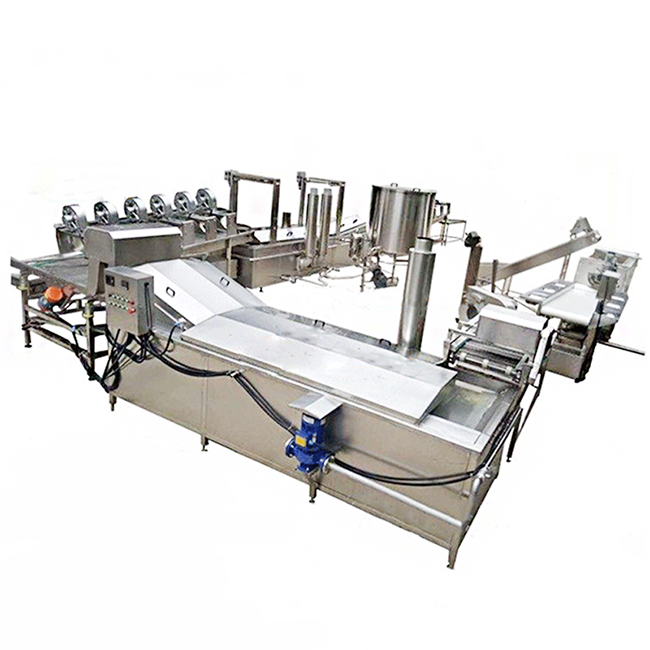

Industrial potato chips production line potato chips french fries full automatic making machine

Industrial potato chips production line potato chips french fries full automatic making machine
Артикул: set
¥123,188.40
Доставить в
*
*
Спопсоб доставки
Название
Ориентировочная дата доставки
Цена
Нет способов доставки

french Fries frying production line,potato chips frying production line

Industrial potato chips production line potato chips french fries full automatic making machine

Industrial potato chips production line potato chips french fries full automatic making machine

Products Advantage
1.Process capacity (finished capacity 100kg/h to 2000kg/h) and work flow can be customized. french frying production line
2. Allequipment are made of SUS304,electrical apparatus element are Schneider brand or CHINT brand.
3. Heating method: Electric heating, Gas heating or Diesel heating (equipped with RIELLO or BALTUR burner), etc.
4. The size of French fries and the thickness of potato chips are adjustable. french fry production line 5. For French fries line, we have special equipment to remove the unqualified fries. french fry production line 6. With special designed fryer, quick heating and energy saving, enabled good performance. french fry production line.

Potato Chips production line allocation list-The above equipment can be customized according to different output.

NO.
Name
Quantity
Dimension
1.
Conveyor hoist machine
1 set
2000*800*2000mm
2.
Cleaning and peeling machine
1 set
1800*900*1500mm
3.
Picking line
1 set
950*800*950mm
4.
French fries potato chip machine
1 set
3000*1600*900mm
5.
Washing machine
1 set
3000*1600*950mm
6.
Blanching machine
1 set
1500*1000*1300mm
7.
Vibration water remover machine
1 set
3000*800*1000mm
8.
Picking line
1 set
4000*1200*1400mm
9.
Air cooled dewatering machine
1 set
2000*800*1300mm
10.
Conveyor hoist machine
1 set
3500*1200*2600mm
11.
Electric heating frying line
1 set
1500*1000*1300mm
12.
Vibration oil remover machine
1 set
4000*1200*1600mm
13.
Air drying machine
1 set
4000*1200*1600mm
14.
Conveyor hoist machine
1 set
2000*800*2200mm
15.
Seasoning machine
1 set
2000*700*1600mm
16.
Packing
1 set
2400*700*3200mm

NO.
Machinery
Feature
1.
Hoister
It is used to lift fresh potatoes into next step screw washing and peeling machine automatically.
2.
Screw potato washing and peeling machine
It is used to peel potatoes completely with hard brush and emery brush, uneven and corrugated brushes can peel potatoes completely.
3.
Inspecting table
It is used to pick out unqualified potatoes such as bad parts and potato eyes manually, this machine can be equipped with Waste bins and return unpeeled potatoes into previous peeling machine.
4.
Potato cutter
It is used to cut potato strips, strips size can be customized
5.
Potato slicer
It is used to cut potato chips, chips thickness can be adjusted.
6.
Hoister with water bucket
It is used to preclean and lift potato strips into next step Rinsing machine.
7.
Rinsing machine
It is used to wash potato starch and protect potato from oxidation to keep strips and chips' color.
8.
Blanching Machine
1.It is used to deactivate the activity of the oxidase, take off the starch to keep french fries’s soft taste.
2.Heating source can use Gas heating, Electricity heating or Diesel heating any one.
3.Blanching time and Blanching temperature can be adjusted.
9.
Vibration de-water machine
It is used to remove extra water, the bottom with water tray. This machine also has many small holes to leak out waste parts and
unqualified parts of strips.
10.
Air-cooling machine
It is used to do secondary water removal.
11.
Hoister
It is used to lift potato strips into next step Continuous frying machine.
12.
Continuous frying machine
1.It is used to fry potato strips into fries in short time.
2.Heating source can use Gas heating, Electricity heating or Diesel heating any one.
3.Frying time and Frying temperature can be adjusted.
13.
Air Drying Machine
It is used to remove extra oil
14.
Air-cooling machine
It is used to do secondary oil removal and cool down the temperature after frying.
15.
Hoister
It is used to convey fries into freezer from air-cooling machine.
16.
Seasoning machine
Pre-packaged fried food for seasoning, batch seasoning, you can match a variety of flavors
17.
Packing machine
Seasoned potato chips and French fries are packaged according to different specifications

Automatic potato chip production line, snacks automatic machine
