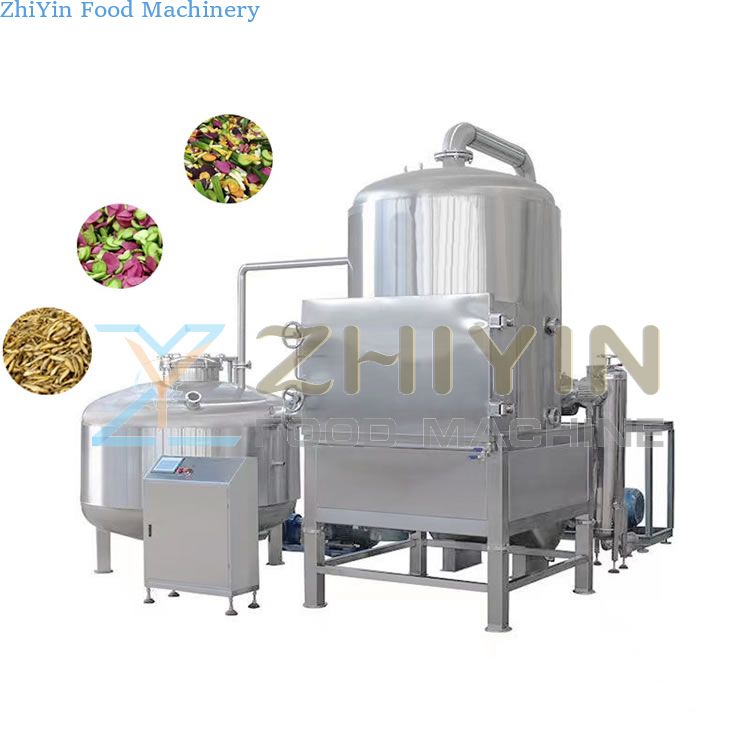

Industrial Low Temperature Fryer, Fruit And Vegetable Slices Vacuum Frying Equipment 300kg/Batch

egetables fruit slices vacuum frying machine Experimental frying machineegetables fruit slices vacuum frying machine Experimental frying machine

Industrial Low Temperature Fryer, Fruit And Vegetable Slices Vacuum Frying Equipment 300kg/Batch

ItemConten
Product name:Vacuum frying machine
Long processing time:30-90 minutes
Oil temperature:80-120(℃)
Heating source:Steam generator
Main heating method:Steam
Degreasing revolutions per minute:0-400(frequency conversion)
Voltage:380v
Vacuum pressure:-0.09 to -0.98mpa
Processing capacity (raw material kg/time):30kg/50kg/100kg/200kg/300kg
Quantity (KG \ lot):6kg/10kg/20kg/40kg/60kg
Batch operation: Oil intake:700L(for reuse)
Oil content:About 10%
Feed quantity:30-300kg/lot
Feeding and discharging ratio:5:1
Reference fuel consumption:About 1% of total oil volume
Fried the raw material:Vegetables/Fruits/Seafood..

Configuration device List:
1.Stainless steel vacuum frying machine
2.heating tank
3.Stainless steel vapor collector condenser
4. Degreasing motor
5.Steam heating system
6.Centrifugal oil pump
7.Water ring vacuum pump
8.PLC and touch screen control cabinet

①. Working Principle:
With fresh fruits and vegetables as the main raw materials, edible vegetable oil as the heating medium, as well as low temperature vacuum frying (VF) and other advanced technologies, the crisp slices of fruits and vegetables can be rapidly dehydrated in a very short time and dry time to obtain low water content.
Fruit and vegetable foods are low in oil, crisp but not greasy, retain the original shape, color, aroma and taste of fruits and vegetables, and are rich in vitamins, minerals, fiber and other nutrients.
They are low in sugar, low in salt, low in fat and low in fever.
Stainless steel coil heating, fast heating, constant oil temperature to ensure the color, aroma, taste and shape of the product.

②. Scope of Food application:
1). Fruits: such as apple, banana, monkey fruit, pineapple, winter date, strawberry, jackfruit, etc.
2). Vegetables: such as carrot, turnip, sweet potato, pumpkin, garlic, onion, mushroom, white gourd, okra and so on.
3) Meat: such as beef, fish, shrimp, octopus and so on.

③. Processing:
Raw materials → sieving → cleaning → slicing (cut into sections) → fixing → drainage → vacuum macerating → quick-frozen → vacuum frying → vacuum degreasing → seasoning → products

④. Composition of vacuum low temperature frying equipment:
Vacuum fryer, oil heating system, vacuum system, steam capture system, hydraulic system, pneumatic system, automatic oil removal system, electrical control system.
