Function:Puffed food machine
Material:Food Grade Stainless Steel
Feature:Low Energy High Speed
Raw material:rice or corn or other type grain powder
Advantage:Easy Operation High Efficiency
.jpeg)
Industrial food extruder, rice grain extruder, grain and rice production line
The twin-screw extruder is composed of two co-rotating high-torque screws that mesh with each other. Due to the wide design range of the screw and barrel, various screw profiles and process functions can be set according to the process requirements, so the twin-screw extruder can be High-strength flexibility ensures transportation, compression, mixing, cooking, shearing, heating, cooling, pumping, molding, etc.
The purpose of extrusion processing is to physically and chemically convert the viscous polymer medium through precise control of processing conditions , And produce high-quality structured products.
The flexibility and visualization of the adjustment of process parameters can be widely used in many fields in the food industry. It is an ideal choice for processing breakfast cereals, snack foods, food raw materials, modified starches, pet foods, etc.
Industrial rice extruder, rice puffing production line, grain ripening rice puffing production machinery:
Model | ZYCP65 | ZYCP70 | ZYCP75 | ZYCP85 |
Installed Power | 130kw | 160kw | 256kw | 205kw |
Capacity | 100-120kg/hour | 200-260kg/hour | 200-350kg/hour | 300-500kg/hour |
Dimension | 39×1.5×2.5m | 41×1.5×2.5m | 52×1.5×2.6m | 45×1.5×2.6m |

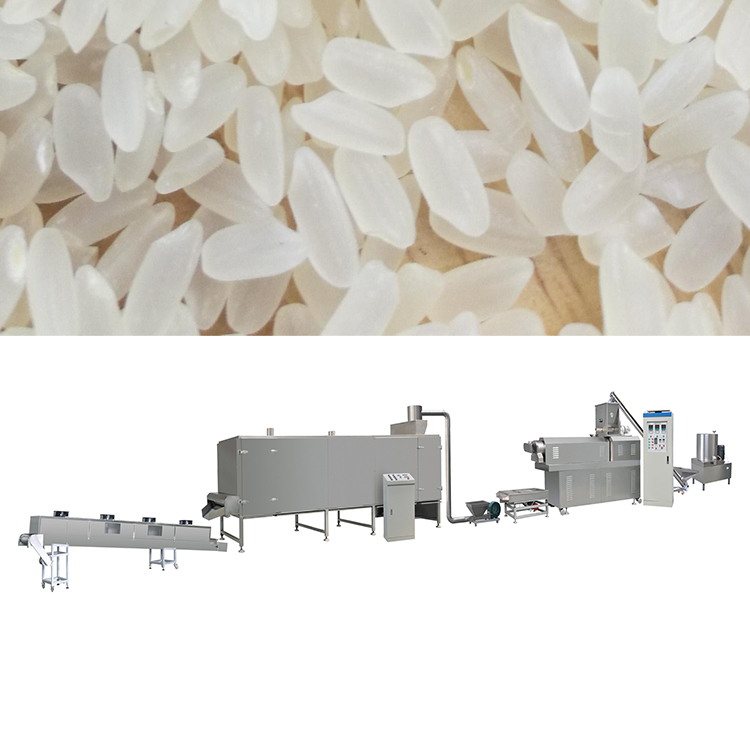

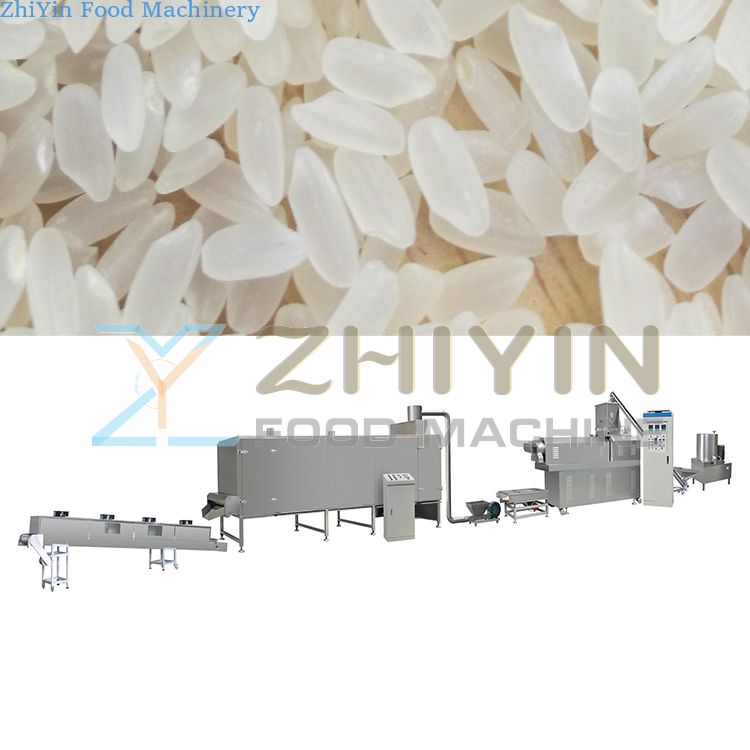

Industrial rice extruder, rice puffing production line,grain and rice production line
Industrial rice extruder, rice puffing production line,grain and rice production line |
NO. | Name | Dimensions | Power | Product usage |
1 | Mix machine | 1260*800*1200mm | 75kw | Used for mixing raw corn flour with a small amount of liquid. |
2 | Screw feeding machine | 3100*590*2200mm | 0.75kw | The mixed material is conveyed to the feed hopper of the extruder by a screw conveyor. |
3 | Twin screw extruder | 5000*1200*1500mm | 165kw | The twin-screw dry extruding extruder is used to extrude the mixed corn flour instantaneously and produce high expanded granules. |
4 | Vibrating screen | 1530*820*790mm | 0.55kw | Removal of debris after the formation of highly expanded particles. |
5 | Air pressure conveyor | 1200*530*2500mm | 1.1kw | The high compression particles are transported to the Tableting machine by air transport mode. |
6 | High temperature oven | 8710*1490*1845mm | 1.5kw | The corn flakes are puffed again at high temperature in the oven to achieve a more |
7 | Cooling line | 5000*500*750mm | 0.75kw | After spraying sugar on the cornflakes out of the dryer after cooling. |
System optional configuration
1. Control system: ordinary control cabinet, intelligent control cabinet.
2. Power module: conventional power module, heavy-duty power module, high-torque power module.
3. Feeding system: single screw feeding, twin screw feeding, intelligent metering feeding.
4. Barrel module: integral barrel, wear-resistant composite barrel.
5. Temperature control system: electric temperature control, steam temperature control, mold temperature and machine temperature.
6. Extrusion die: customized according to process requirements.
Industrial rice extruder, rice puffing production line-Can do other puffed food display:
