Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine

Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine

Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine
Be the first to review this product
SKU: set
$0.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine

Industrial Hot Air Circulation Vegetable Fruit Slices Dehydrator Machine Turmeric Food Fruit Fish Meat Drying Oven Machine item value Type Drying Oven Application Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing Condition New Place of Origin China Voltage 380V Power 4.5KW Dimension(L*W*H) 1600*2300*1920mm Key Selling Points Multifunctional Warranty 1 Year Weight (KG) 380 Applicable Industries Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops Showroom Location None Marketing Type New Product 2023 Machinery Test Report Provided Video outgoing-inspection Provided Warranty of core components 1 Year Core Components Motor, PLC Evaporation Capacity(kg/h) 10 Heating Method Electric Heating Material SUS304, SUS304L, SUS316, SUS316L, Ti Name Industrial Dryer Machine Product name Industrial Vegetable Fruit Dryers Application Food Processing Material SUS304/ SUS316L/ Q235 Function Food Vegetable Fruit Dehydrator Usage Food Dehydrator Drying Heating source Electric Feature Box Type Drying Machine Product Type Multilayer pallet type Item Multifuntion Dryer Dehydrator Machine

Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine

item
value
Type
Drying Oven
Application
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition
New
Place of Origin
China
Voltage
380V
Power
4.5KW
Dimension(L*W*H)
1600*2300*1920mm
Key Selling Points
Multifunctional
Warranty
1 Year
Weight (KG)
380
Applicable Industries
Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
Showroom Location
None
Marketing Type
New Product 2023
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, PLC
Evaporation Capacity(kg/h)
10
Heating Method
Electric Heating
Material
SUS304, SUS304L, SUS316, SUS316L, Ti
Name
Industrial Dryer Machine
Product name
Industrial Vegetable Fruit Dryers
Application
Food Processing
Material
SUS304/ SUS316L/ Q235
Function
Food Vegetable Fruit Dehydrator
Usage
Food Dehydrator Drying
Heating source
Electric
Feature
Box Type Drying Machine
Product Type
Multilayer pallet type
Item
Multifuntion Dryer Dehydrator Machine

Hot Air Circulation Energy-saving Drying Equipment Vegetable Fruit Slice Dehydrator Drying Machine Herbal Medicine Dehydration Drying Machine

Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine

Hot Air Circulation Energy-saving Drying Equipment Vegetable Fruit Slice Dehydrator Drying Machine Herbal Medicine Dehydration Drying Machine

Industrial Hot Air Circulation Vegetable Fruit Slices Dehydrator Machine Turmeric Food Fruit Fish Meat Drying Oven Machine item value Type Drying Oven Application Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing Condition New Place of Origin China Voltage 380V Power 4.5KW Dimension(L*W*H) 1600*2300*1920mm Key Selling Points Multifunctional Warranty 1 Year Weight (KG) 380 Applicable Industries Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops Showroom Location None Marketing Type New Product 2023 Machinery Test Report Provided Video outgoing-inspection Provided Warranty of core components 1 Year Core Components Motor, PLC Evaporation Capacity(kg/h) 10 Heating Method Electric Heating Material SUS304, SUS304L, SUS316, SUS316L, Ti Name Industrial Dryer Machine Product name Industrial Vegetable Fruit Dryers Application Food Processing Material SUS304/ SUS316L/ Q235 Function Food Vegetable Fruit Dehydrator Usage Food Dehydrator Drying Heating source Electric Feature Box Type Drying Machine Product Type Multilayer pallet type Item Multifuntion Dryer Dehydrator Machine

item
value
Type
Drying Oven
Application
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition
New
Place of Origin
China
Voltage
380V
Power
4.5KW
Dimension(L*W*H)
1600*2300*1920mm
Key Selling Points
Multifunctional
Warranty
1 Year
Weight (KG)
380
Applicable Industries
Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
Showroom Location
None
Marketing Type
New Product 2023
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, PLC
Evaporation Capacity(kg/h)
10
Heating Method
Electric Heating
Material
SUS304, SUS304L, SUS316, SUS316L, Ti
Name
Industrial Dryer Machine
Product name
Industrial Vegetable Fruit Dryers
Application
Food Processing
Material
SUS304/ SUS316L/ Q235
Function
Food Vegetable Fruit Dehydrator
Usage
Food Dehydrator Drying
Heating source
Electric
Feature
Box Type Drying Machine
Product Type
Multilayer pallet type
Item
Multifuntion Dryer Dehydrator Machine

Hot Air Circulation Energy-saving Drying Equipment Vegetable Fruit Slice Dehydrator Drying Machine Herbal Medicine Dehydration Drying Machine

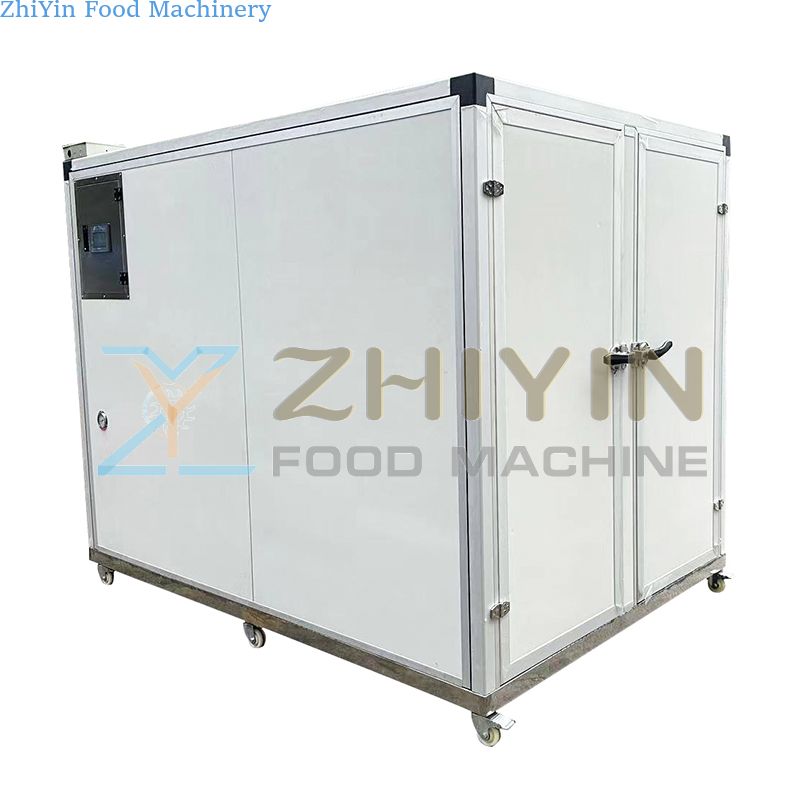

Equipment name:
Integrated heat pump oven
Equipment external dimensions:
1600*2300*1920MM
Equipment internal size:
1500*1750*1750MM
Equipment rated power:
3kw
Equipment maximum power:
6kw
Box insulation material:
Inner SUS304 extruded board
Insulation box thickness:
50MM
Power type:
380V/3N/50HZ
Temperature range:
75℃
Dehydration type:
Dehumidification and dehumidification
Unit dehydration capacity:
7.5KG/H
Number of compressors:
3P

Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine

Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine

Working principle of heat pump:

Use the refrigeration system to cool down and dehumidify the humid air from the drying room, and recover the latent heat of moisture condensation to heat the dry air again; taking into account the combination of dehumidification and heat pump energy recovery, the recycling of energy in the drying process, and heating up to achieve the drying, dehumidification and dehydration process.

The working principle of the equipment:

A device that uses a refrigeration system to cool and dehumidify hot and humid air while recovering the latent heat of
condensation of air moisture through the principle of a heat pump to heat the air.

Equipment innovation technology:

(1) Breaking through the high temperature bottleneck - breaking through the temperature bottleneck of the original
dehumidification and drying heat pump, the effective temperature of the air outlet can reach 70 degrees, which solves the problems of frosting and poor dehumidification performance in winter.
(2) Multi-stage dehumidification technology - adopting intermediate heat exchange cooling dehumidification and temperature gradient utilization technology, the dehumidification performance can effectively reach more than 3kg.H2O/KW.h.
(3) Break through the bottleneck of dehumidification - solve technical problems such as
poor dehumidification performance of traditional dehumidification equipment under high temperature and low humidity conditions, and even compressor idling without dehumidification.
(4) Refrigerant heat recovery technology - through the heat exchange between low-pressure gas and high-pressure liquid of the economizer, the low-pressure gas is superheated and the refrigerant liquid is supercooled, which improves the refrigeration efficiency of the compressor and saves operating costs.
(5) Wide range of drying temperature - the air outlet temperature of the equipment ranges from 15 to 70 degrees, and the air supply temperature can reach 80 degrees, which can meet the requirements of hot air, cold air, and cold and hot drying.
Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine
Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine
Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine
Hot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying MachineHot Air Circulation Dehydrator Drying Equipment Vegetable Fruit Slice Dehydrator Food Chinese Herbal Dehydration Drying Machine
