Gas Heating Dumpling Instant Noodle Frying Machine Industrial snack frying machine Potato Chips

Gas Heating Dumpling Instant Noodle Frying Machine Industrial snack frying machine Potato Chips/French Fries Fryer
Артикул: set
¥0.00
Доставить в
*
*
Спопсоб доставки
Название
Ориентировочная дата доставки
Цена
Нет способов доставки

Gas Heating Dumpling Instant Noodle Frying Machine Industrial snack frying machine Potato Chips/French Fries Fryer

Power Source:Gas
Voltage:220V/380V
Power:4.5KW
Weight:1200kg
Dimension(L*W*H):6000*2000*1900mm
Capacity:1000kg
After-sales Service Provided:Video technical support
Key Selling Points:High Productivity
Marketing Type:New Product 2021
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Motor
Product name:Fish Ball Frying Machine
Usage:Potato Chips/Seafood/Snacks
Material:304 Stainless Steel
Type:Gas Heating Frying Machine
Temperature Range:0-300 Degree
Feature:Continuous, high capacity

Gas Heating Dumpling Instant Noodle Frying Machine Industrial snack frying machine Potato Chips/French Fries Fryer

1.The frying machine is made of food grade 304 stainless steel. It consists of stainless steel belt, control panel, motor & speed reducer, stainless frame, etc. This machine adopts double layer conveying belt system to make snacks sink in the oil thoroughly. The heating temperature and frying time can be adjusted as your requirement. Meanwhile, the processing is fully automatic, just pressing the control button. In addition, the machine adopts advanced technology, save oil and keep the food with good taste and color. 2. It works with vacuum oil filter to remove the impurities continuously and keep the oil working for a long time to save production cost.
Model
Dimension
mm
Temperature
°C
Mesh belt width
mm
Capacity
kg/h
YZJ-2500
2500*800*1400
0-300
800
200-300
YZJ-3000
3000*1200*2200
0-300
800
400-500
YZJ-4000
4000*1200*2200
0-300
800
500-600
YZJ-5000
5000*1200*2200
0-300
800
700-800
YZJ-6000
6000*1200*2200
0-300
800
900-1000
YZJ-7000
7000*1200*2200
0-300
800
1000-1100
YZJ-8000
8000*1200*2200
0-300
800
1100-1200
Note: The frying machine can be customized according to your requirement, such as the mesh belt width, the voltage, logo brand, etc.

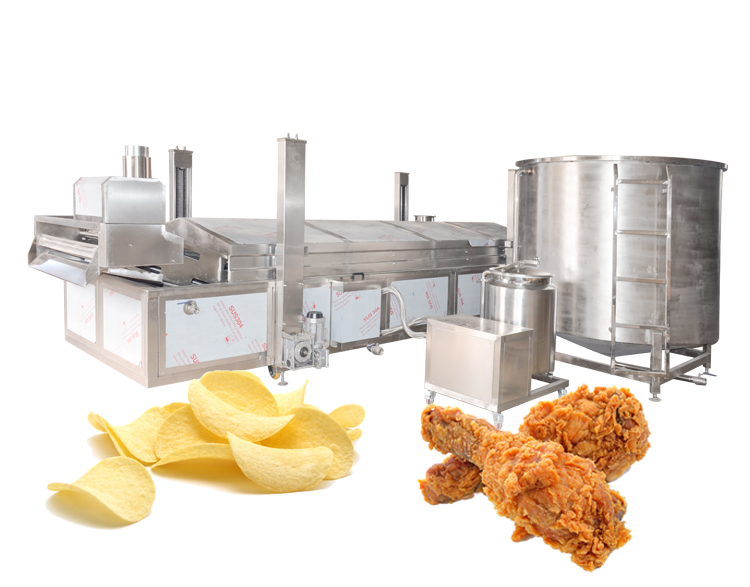

Features of Gas Heating Continuous Frying Machine

1.Conveyor belt speed is adjustable for different frying time according to different products.
2.Electricity, gas or diesel, and also electromagnetism as power source. Gas or diesel model uses the most advanced and reliable Italy imported Riello brand burner. with the advantage of fuel economy, low noise, prevent heating loss, high efficiency.

3.Automatic lifting system for easy cleaning the machine and save human power.

4.Oil circulation system to continuously filter oil residue and extend the service life of cooking.

5.Oil level alarm and automatic oil temperature control (0-300°C).

6.Double belt design to prevent floating, ensure complete and perfect frying effect.
7.Scrapers fixed on the belt to make the products come out easily.

8.Fire-extinguishing system can be added according to your demand.
9.PLC touch screen control panel.

Gas Heating Automatic Industrial Corn Fryer Popcorn Corn Frying Machine Fish Frying Machine

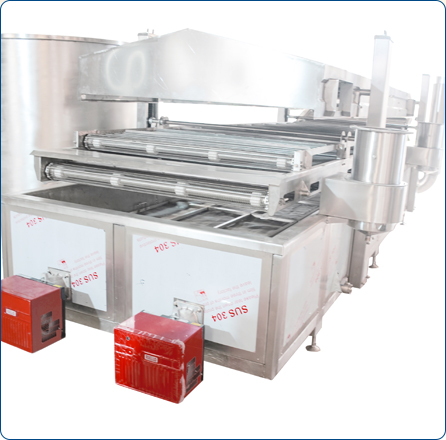

Automatic Gas Heating Frying Machine:
1.Pot body made of thickened stainless steel 304,baseboard is 5mm thickness.
2.Pot body shell made of 1mm 304 stainless steel.
3.Water leakage test to make sure the leakproofness after welding.
4.Aluminum silicate insulation materials is filled between pot body and shell.
5.Drain valve is installed on the bottom of fryer.
6.Oil vent installed on the in-feed of the fryer to prevent floating and remaining at the entry
Gas Heating Automatic Industrial Corn Fryer Popcorn Corn Frying Machine Fish Frying Machine
Improve the system:
1.Use chain lifting system.
2.It can lift the exhaust hood independently.
3.The cover, belt rack and heating pipe can be lifted separately.
4.Easy to clean mesh belt and exhaust hood.
5.Use safety bumpers to ensure the belt is fixed.
Gas Heating Automatic Industrial Corn Fryer Popcorn Corn Frying Machine Fish Frying Machine

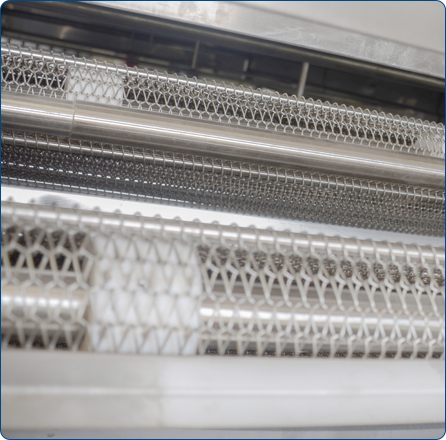

Mesh belt conveying system:
1.Belt speed is frequency controlled.
2.Different belt based on request
3.The mesh belt holder made of 3mm stainless steel.
4.The exhaust cover and belt holder can be lifted individually,easy cleaning.
5.The bearing and seat is made of stainless steel 304.
6.The gap of double belt is 30-.80mm (adjustable) 7.Transmission use gear reducer with low noise.
Gas Heating Automatic Industrial Corn Fryer Popcorn Corn Frying Machine Fish Frying Machine

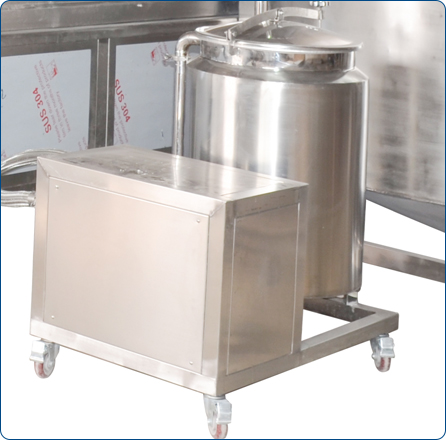

Automatic filter:
1.Oil from the circulator into the oil filter, fine filtration.
2.The electronic control part adopts Siemens, Schneider and other well-known brands.
Gas Heating Automatic Industrial Corn Fryer Popcorn Corn Frying Machine Fish Frying Machine

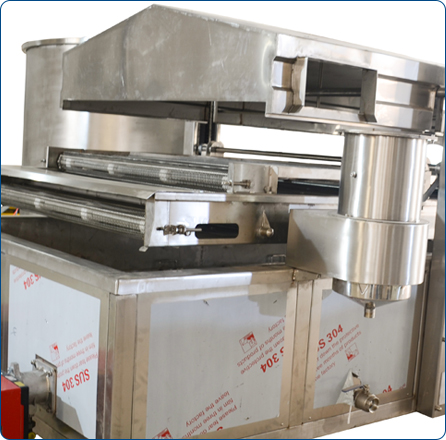

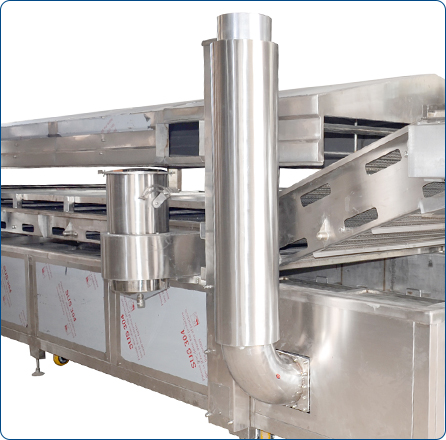

Eliminating lampblack system:
1.Cover plate and exhaust pipe are equipped with steam and exhaust gas elimination system.
2.Two oil steam exhaust pipes, one gas exhaust pipe, made of 304 stainless steel.
3.The oil steam exhaust pipe is installed at both ends of the machine.
4.The combustion exhaust pipe is installed at the bottom of the exhaust seat.
Gas Heating Automatic Industrial Corn Fryer Popcorn Corn Frying Machine Fish Frying Machine

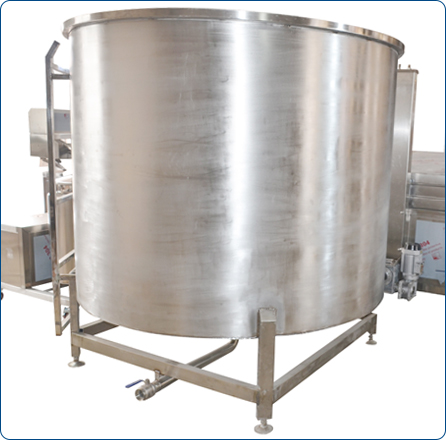

Oil tank:
1.Oil tank is used to store the oil after working for cleaning the frying machine. It can pump oil back to the oil tank from fryer. It also can automatic fill the oil to fryer during frying. 2.Volume of oil:2000kg 3.Material:SUS304 stainless steel 4.Size:1800(diameter)*1800(height)
