1. Function introduction:

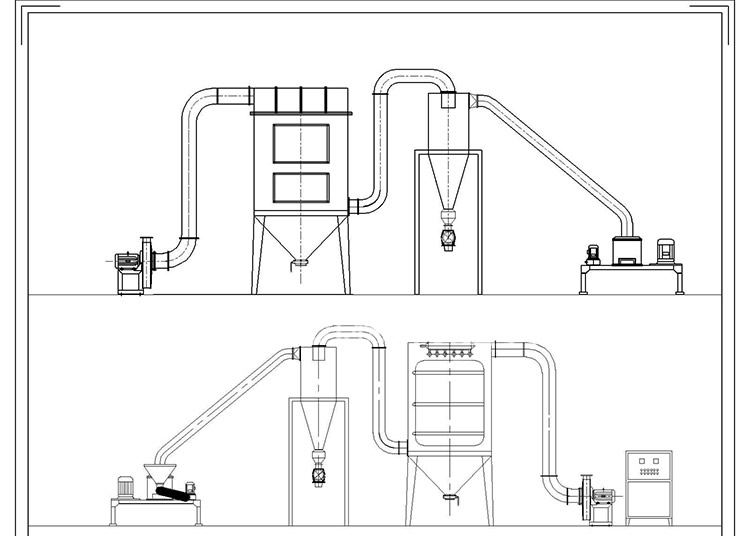

The food processing ultrafine pulverizing unit is mainly suitable for the pulverization requirements of 80-400 mesh and large output. It is very suitable for the high-precision pulverization requirements of pharmaceutical factories, food factories and chemical factories. The crushing unit is mainly composed of three parts: the main engine, the auxiliary machine and the electric control box. The design is compact and the structure is reasonable. The whole ultra-fine pulverizing unit is made of stainless steel. The machine is equipped with a grading mechanism, which can complete the crushing and grading at one time. Negative pressure conveying makes the heat generated in the cavity continuously discharged during the crushing operation, so it is also suitable for the crushing of heat-sensitive materials. This machine has a wide range of applications, the production process is continuous, and the discharge granularity is adjustable. All models of ultra-fine pulverizing units include a main engine, a speed-adjustable screw feeder, a cyclone collector plus an air hammer vibration device, a bag-type dust box plus an airflow pulse device, and an induced draft motor to cause negative pressure.

The high-power induced draft motor can not only form a negative pressure in the conveying pipeline, so that the fine powder that meets the requirements is automatically sucked into the pipeline by the wind, and the huge air volume also takes away the heat continuously generated in the crushing chamber, and at the same time plays a role in the pipeline of the crushing unit. A powerful cleaning effect. The discharge port of the cyclone collector is equipped with a closed fan, and there is no dust flying at the powder outlet, which achieves the effect of cleaning and saving.

2. Crushing objects:

The food processing ultra-fine crushing unit can handle the crushing and grading of various materials such as chemicals, food, medicine, cosmetics, dyes, resins, shells, etc. The machine has reached the advanced level. It can have a good crushing effect on various materials such as rice, sugar, various beans, agarwood, pepper, pepper, coffee beans, cocoa beans, fennel, star anise, cinnamon, cumin, cardamom, thyme and so on. Materials with particularly high oil content, such as sesame, walnut, peanut, almond, melon seeds, etc., cannot be crushed separately. To crush materials with particularly high oil content, it needs to be mixed with other materials with no oil or low oil content, and the proportion of materials with high oil content should be lower than 25% as much as possible. If there are large particles of high oil content materials, before crushing with the ultra-fine pulverizing unit, it needs to be crushed (coarsely crushed) with a crusher or a stainless steel coarse crusher, and then ultra-finely pulverized with an ultra-fine pulverizing unit.

3. Working principle:

The material enters the crushing chamber from the material gate through the screw conveyor, and is sheared and crushed by the high-speed rotating blade. The material is transported into the cyclone separator by means of negative pressure air transportation. The vacuum box is filtered and recycled by cloth bags, and there is no dust flying during the production process, and it can improve the utilization rate of materials and reduce the cost of enterprises.
