Food drying machine freeze dryer vacuum freeze drying equipment dry fruit machine freeze dry machine

Food drying machine freeze dryer vacuum freeze drying equipment dry fruit machine freeze dry machine.

Voltage:220V/380V
Key Selling Points:Automatic
Warranty:1 Year
Weight (KG):2000
Applicable Industries:Machinery Repair Shops, Farms, Home Use, Food Shop, Printing Shops, Food & Beverage Shops
Showroom Location:None
Marketing Type:New Product 2021
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Motor, PLC
Evaporation Capacity(kg/h):100
Heating Method:Steam Heating
Material:SUS304, SUS304
Name:Vacuum freeze-drying machine
Function:Food Vegetable Fruit Dehydrator
Heating source:Electricity
Keywords:Fruit Vegetable Dryer
Product Type:Vacuum Freeze Dryer
Dryig process:Continuous Automatic Drying Machine
After-sales Service Provided:Video Support
Usage:Drying Wet Materials

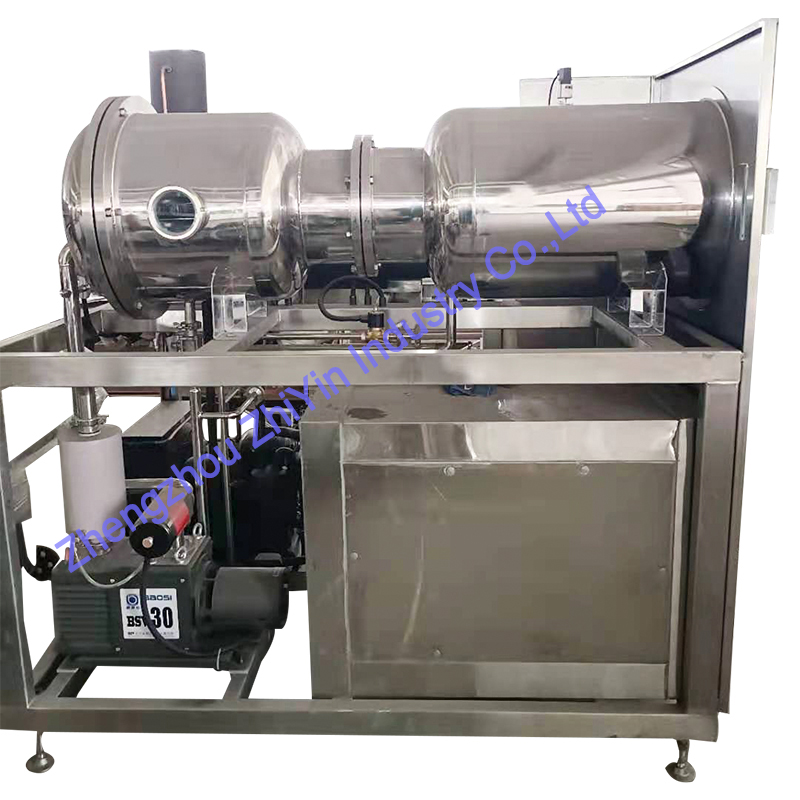

1. The drying tank of vacuum freeze dryer is made of stainless steel (reinforced with carbon steel anti-rust). All the connectors
inside the tank except the I-steel guide rail are made of stainless steel, and the metal hose connected with the heating plate is
made of stainless steel, flange connection to prevent vibration. 2. In order to meet the needs of production, we provide one set
of skip car and material tray for one set of equipment. The material tray is made of aluminum alloy, the skip car and the hanging
rail are made of stainless steel SUS304, the skip car hanging rail is made of carbon steel, anti-rust treatment. 3. Refrigeration,
heating, vacuum, electrical, rail transportation and defrosting systems are all controlled automatically Especially the rail
transportation system adopts pneumatic control.



The main technical parameters of the equipment
Project	parameter
Model	GFD-5m²
Quantity	1 set
Effective drying surface area	10m²
Heating method	Steam, radiant heating
Cold trap form	One-time catching and flushing
Maximum processing volume per batch	3m³/tank/time

Conditions of use
project	parameter
Working temperature of heating plate	Room temperature～120ºC
Cold trap refrigerant evaporation temperature	-30ºC～-45ºC
Working pressure of tank	20Pa～133Pa
Operating parameters
Vacuum reaches 10Pa～133Pa (no load)	15～30min
Single tank static vacuum degree (pressure)	15Pa
Maximum water capacity of single tank cold trap (calculated on ice)	10kg/h
Income index
Standard loading amount	100kg/batch
Maximum loading	130kg/batch
Drying time (the water content is related to the material)	10-20 hours
Medium requirements
Refrigerant (closed cycle)	R404A
Heating medium in heating system (closed loop)	Distilled or deionized water
Air cooler defrosting water (inlet water temperature ≤40ºC, circulating)	Softened water or tap water (circulation)
Cooling water (inlet water temperature ≤32ºC, circulating)	Softened water or tap water (circulation)
Washing water for drying tank, material truck and material pan.	Softened water or tap water



Working principle of freeze dry:  In a sealed vacuum surrounding, by heating the complete frozen food material, the moisture in the frozen material will be evaporated to a continuous frozen vapor condenser. After 20-30 hours, the food material is dried, the water is moved to vapor condenser of the freeze dryer.

Application of our freeze dryer:

 Vacuum freeze-drying technology is applied to process food material to make freeze dried food. The freeze dryer is used in all conceivable kinds of agricultural products with top drying quality. Fruits: durian, strawberry, mango, apricot, kiwifruit, pineapple, lemon, raspberry, avocado, banana etc. Vegetables: broccoli, parsley, mushroom, bean, scallion, asparagus, onion, celery, carrot, tomato, pepper etc. Other food: beef, coffee, colostrums, herbal, flower, tea, honey, sea food and all kinds of pets food.
