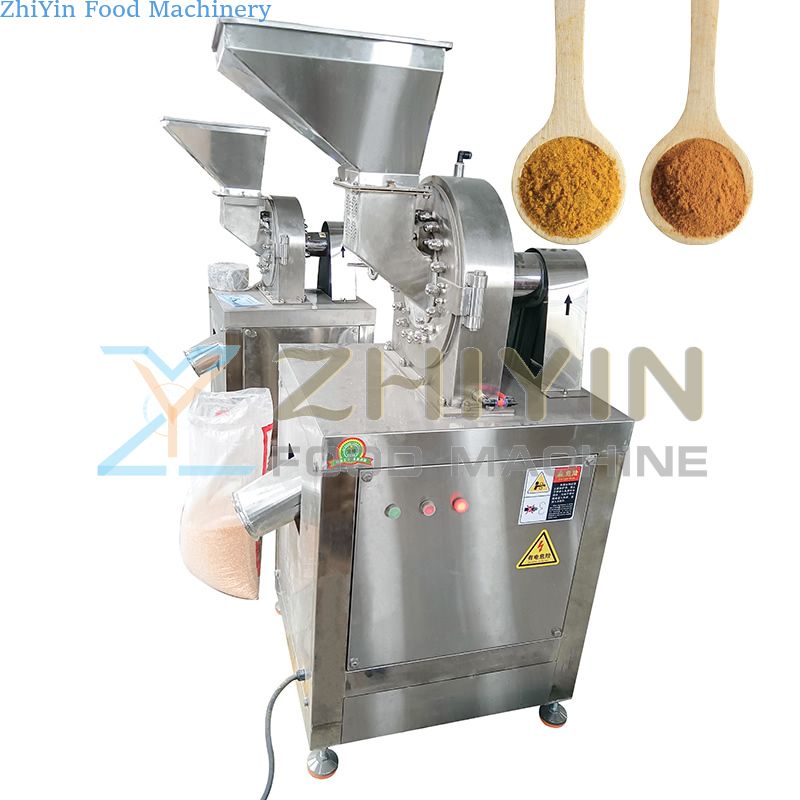

Factory Price Crop Processing And Crushing Machine Automatic Crop Bean Milling Pulverizing Machine Sugar Grinding Machinery

Product Name:Grain Grinding Machine
Product Capacity:40kg/h, 50kg/h, 150kg/h, 250kg/h, 350kg/h, 400kg/h, 450kg/h, 500kg/h, 600kg/h, 700kg/h, 750kg/h
Finished Style:Powder
Core Components:Motor
Brand Name:ZHIYIN
Voltage:220v/380V
Power:1100W
Dimension(L*W*H)700*900*1700mm(customizable)
Other Name:Pulverizing machine
Function:Fine grinding powder custom
Final product:Silty powder
Usage:Cereal milling
Application:Cereal milling equipment
Processing Types:Grain fine milling equipment
Feature:High Efficiency Easy Operation

Factory Price Crop Processing And Crushing Machine Automatic Crop Bean Milling Pulverizing Machine Sugar Grinding Machinery

Factory Price Crop Processing And Crushing Machine Automatic Crop Bean Milling Pulverizing Machine Sugar Grinding Machinery

Specification

Factory Price Crop Processing And Crushing Machine Automatic Crop Bean Milling Pulverizing Machine Sugar Grinding Machinery

Model
ZYPM-200
ZYPM-250
ZYPM-300
ZYPM-400
ZYPM-500
ZYPM-650
Capacity(kg/h)
10-120
50-200
80-300
100-500
300-1000
400-1500
Rotary Speed
(r/min)
5200
4200
4200
4200
3900
2800
Voltage(V)
220
380
380
380
380
380
Power(kw)
3.0
5.5
7.5
11
15
22
Fineness(mesh)
10-120
Weight(kg)
120
220
300
400
350
480
Machine Size
(mm)
510*450*900
660*580*1210
1000*630*1230
1200*790*1300
900*700*1700
1400*1150*1500
Package Size
(mm)
660*510*970
860*660*1250
1070*760*1150
1300*930*1230
1030*780*1750
1500*1250*1480

Factory Price Crop Processing And Crushing Machine Automatic Crop Bean Milling Pulverizing Machine Sugar Grinding Machinery

Number of punching mesh(Fineness)
Aperture size(For reference only)
120 Mesh
0.4 MM
100 Mesh
0.6 MM
80 Mesh
0.7 MM
60 Mesh
0.8 MM
40 Mesh
1 MM
30 Mesh
1.2 MM
20 Mesh
1.5 MM
16 Mesh
1.8 MM
12 Mesh
2 MM
10 Mesh
2.5 MM

Details Images

Factory Price Crop Processing And Crushing Machine Automatic Crop Bean Milling Pulverizing Machine Sugar Grinding Machinery

Waterproof switch

1. Waterproof switch design, easy operation.
2. First turn on the grinding operation switch of the machine, and then put in the material.
3.The whole body 304 stainless steel cover, easy to clean
304 Stainless steel material

1.The whole machine adopts 304 Stainless steel material.
2.Square stainless steel hopper with adjustable feeding speed.
3.Support capacity customization according to material requirements.
Special custom grinding device

1. Customized grinding for products with high powdered sugar content.
2. Cool down materials with high sugar viscosity.
3. Rock sugar and white sand saccharin fine grinding machine
Material hatch door sealant gasket

1. The material hatch door adopts sealant cushion.
2. Effectively prevent material spills and dusting.
3. Stainless steel rotary nut handle, easy to replace filter and clean operation.
Thickened stirring shaft

1. Use 304 stainless steel thickened mixing shaft.
2. Multi-function grinding design of mixing shaft of hatch door.
3. It is forbidden to open the bin door during operation
Grinding screen customization

1.Stainless steel screen, support coarse grinding product size customization(4mm/5mm/6mm/8mm).
2.The aperture is one screen mold, and multiple sizes need to customize multiple sets of grinding mesh mold.
3.Replace the screen mold quickly and conveniently, disassemble the nut nails for replacement.
