Automatic packaging machine industrial puffed food packaging machine 520K French fries snacks packing machine
Automatic packaging machine industrial puffed food packaging machine 520K French fries snacks packing machine

Automatic packaging machine industrial puffed food packaging machine 520K French fries snacks packing machine

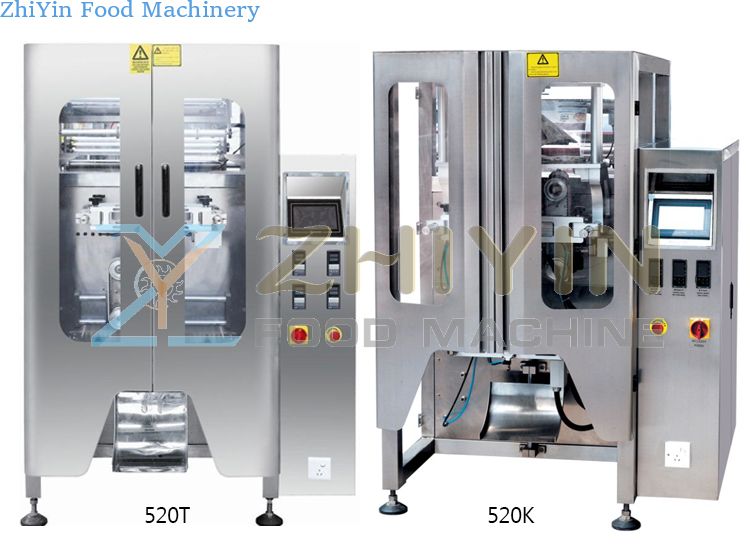

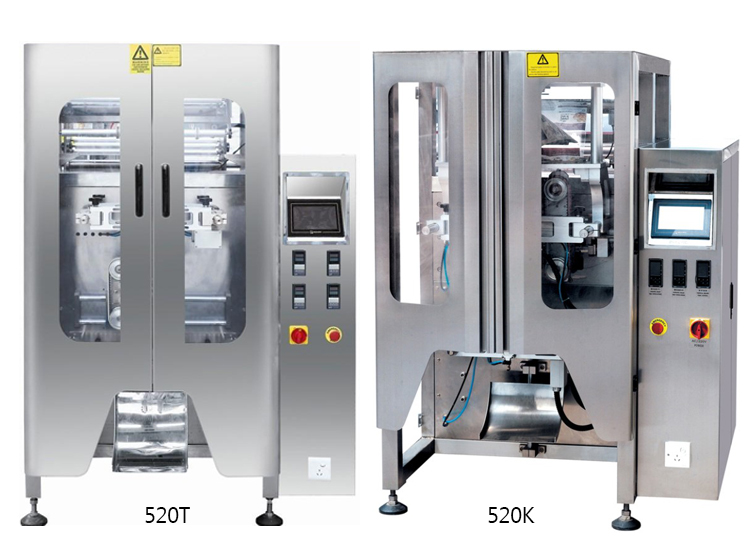

520T-The structural feature
1. The four sides sealing filling machine is added on the packaging bag based on vertical bag, make the packaging bag have astronger spatial vision, nicer appearance and more attraction.
2. PLC control with touch panel-step by step instruction.
3. Equipped with servo winding system, pneumatic contr system.
4. Use intellectual temperature controller, the high temperature control to ensure neat sealing.
5. The perfect automatic alarm safety protection, littie waste. the machine will automatically complete al
packaging processes from feeding, measuring, filling Printing ,finished bag.
Item
Conten
Packing speed
10-40bags/min
Bag-size
Front width:70-180mm
Side width:60-100mm
Width of side seal:5-10mm
Length:100-350mm
Bag making mode
Block boottom type
The max width of packing film
Max 500mm
Power source
4.5KW/220V 50-60Hz
Dimension
(L)1600*(W)1400*(H)2000mm
Total configuration weight
750kg

520K-Vertical Packing Machine Feature:
1. Imported PLC fully computer-controlled system, ouch screen is intuitionist and easy to operate with different lanquages,show you The working state and operating instructions.
2.Vacuum film transportation system,it will more stable,placidly and quickly,small friction,littile waste.Coordinate with Photoelectric automatid positioning tracking system and High positioning accuracy.
3.Horizontal Sealinq by Servo motor,make it stability,Formation,artistic,Low air consumption.
4.Intelligent digital temperature control system,make the temperature control more stable.with toothed sealer.ensure firm sealing.
5.With automatic fault alarm display function,Such as, If the temperature is.low, no packaging film, no ribbons, no material,
servo failure, colorless standard signal, will automatically alarm or shutdown feature when Glass protective door open.
Item
Conten
Packing speed
10-100bags/min
Bag size
(L)80-350mm (W)90-250mm
bag making mode
pillow-type bag,standing bag,pubching device
Range of measuring
3600ml
The max width of packing film
Max 520mm
Air consumption
0.2CBM/min 0.6Pa
Power source
4.5KW/220V 50-60Hz
Dimension
(L)1940*(W)1220*(H)1800mm
Total configuration weight
650kg

Automatic Frozen French Fries Packing Machine for Frozen Food,Small Snack Food Potato Plantain Banana Chips Packaging machine

Automatic Frozen French Fries Packing Machine for Frozen Food,Small Snack Food Potato Plantain Banana Chips Packaging machineAutomatic Frozen French Fries Packing Machine for Frozen Food
