automatic large capacity rice maize cocoa bean power grain grinding pulverizer crushing milling processing machine

automatic large capacity rice maize cocoa bean power grain grinding pulverizer crushing milling processing machine

Be the first to review this product

SKU: set

$0.00

Qty:

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

automatic large capacity rice maize cocoa bean power grain grinding pulverizer crushing milling processing machine

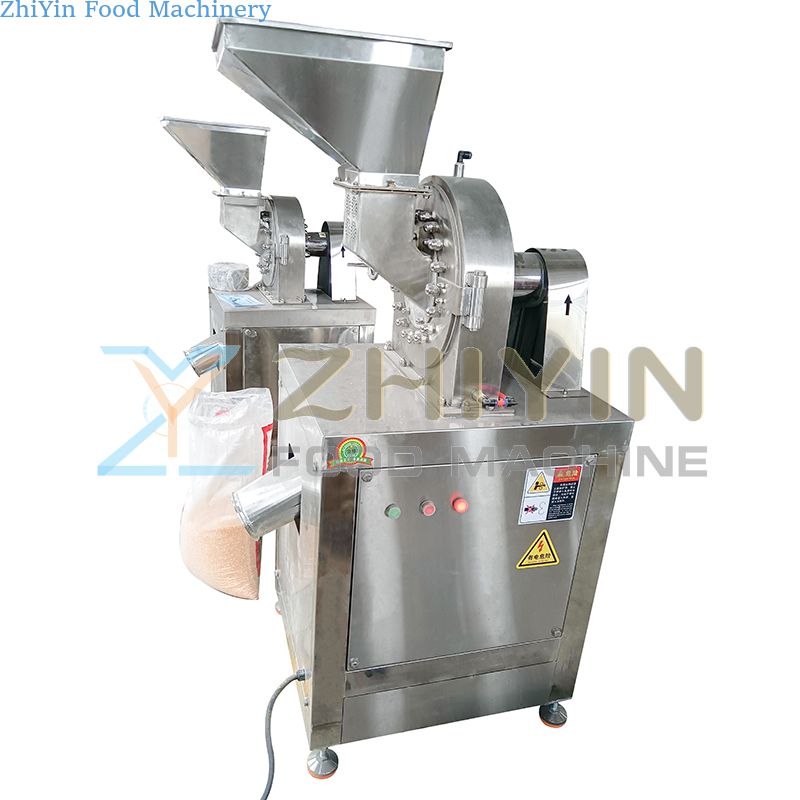

Product Name:	Grain Grinding Machine
Product Capacity:	40kg/h, 50kg/h, 150kg/h, 250kg/h, 350kg/h, 400kg/h, 450kg/h, 500kg/h, 600kg/h, 700kg/h, 750kg/h
Finished Style:	Powder
Core Components:	Motor
Brand Name:	ZHIYIN
Voltage:	220v/380V
Power:	1100W
Dimension(LWH)	7009001700mm(customizable)
Other Name:	Pulverizing machine
Function:	Fine grinding powder custom
Final product:	Silty powder
Usage:	Cereal milling
Application:	Cereal milling equipment
Processing Types:	Grain fine milling equipment
Feature:	High Efficiency Easy Operation

automatic large capacity rice maize cocoa bean power grain grinding pulverizer crushing milling processing machine

Specification

automatic large capacity rice maize cocoa bean power grain grinding pulverizer crushing milling processing machine

Model	ZYPM-200	ZYPM-250	ZYPM-300	ZYPM-400	ZYPM-500	ZYPM-650
Capacity(kg/h)	10-120	50-200	80-300	100-500	300-1000	400-1500
Rotary Speed (r/min)	5200	4200	4200	4200	3900	2800
Voltage(V)	220	380	380	380	380	380
Power(kw)	3.0	5.5	7.5	11	15	22
Fineness(mesh)	10-120
Weight(kg)	120	220	300	400	350	480
Machine Size (mm)	510450900	6605801210	10006301230	12007901300	9007001700	140011501500
Package Size (mm)	660510970	8606601250	10707601150	13009301230	10307801750	150012501480

Number of punching mesh(Fineness)	Aperture size(For reference only)
120 Mesh	0.4 MM
100 Mesh	0.6 MM
80 Mesh	0.7 MM
60 Mesh	0.8 MM
40 Mesh	1 MM
30 Mesh	1.2 MM
20 Mesh	1.5 MM
16 Mesh	1.8 MM
12 Mesh	2 MM
10 Mesh	2.5 MM

Details Images

automatic large capacity rice maize cocoa bean power grain grinding pulverizer crushing milling processing machine

	Waterproof switch 1. Waterproof switch design, easy operation. 2. First turn on the grinding operation switch of the machine, and then put in the material. 3.The whole body 304 stainless steel cover, easy to clean
	304 Stainless steel material 1.The whole machine adopts 304 Stainless steel material. 2.Square stainless steel hopper with adjustable feeding speed. 3.Support capacity customization according to material requirements.
	Special custom grinding device 1. Customized grinding for products with high powdered sugar content. 2. Cool down materials with high sugar viscosity. 3. Rock sugar and white sand saccharin fine grinding machine
	Material hatch door sealant gasket 1. The material hatch door adopts sealant cushion. 2. Effectively prevent material spills and dusting. 3. Stainless steel rotary nut handle, easy to replace filter and clean operation.
	Thickened stirring shaft 1. Use 304 stainless steel thickened mixing shaft. 2. Multi-function grinding design of mixing shaft of hatch door. 3. It is forbidden to open the bin door during operation
	Grinding screen customization 1.Stainless steel screen, support coarse grinding product size customization(4mm/5mm/6mm/8mm). 2.The aperture is one screen mold, and multiple sizes need to customize multiple sets of grinding mesh mold. 3.Replace the screen mold quickly and conveniently, disassemble the nut nails for replacement.
